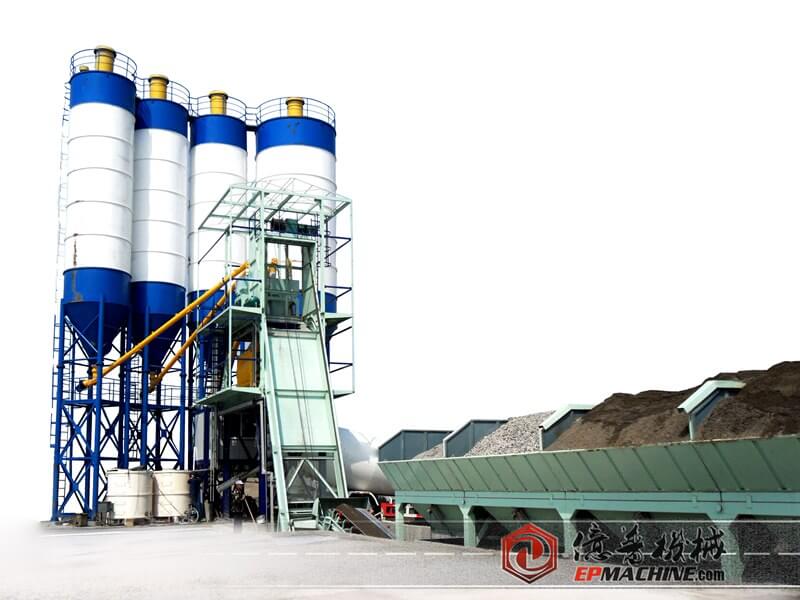

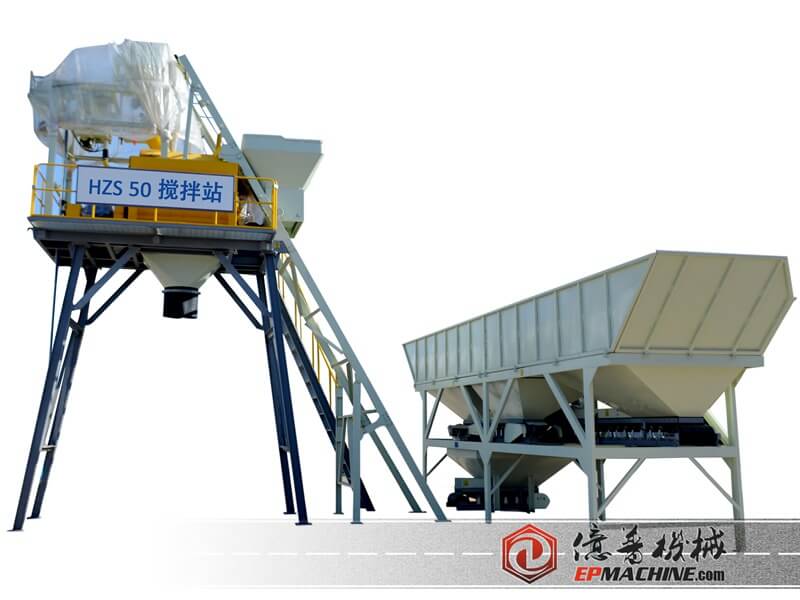

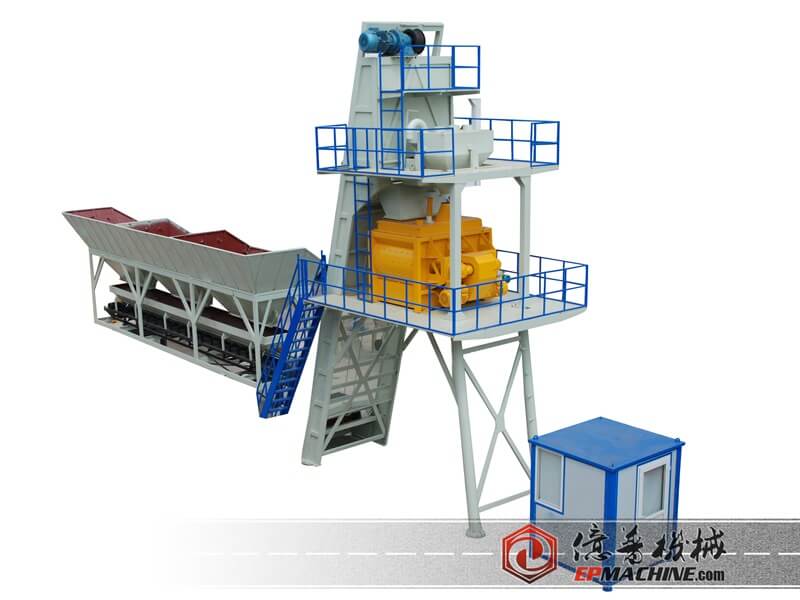

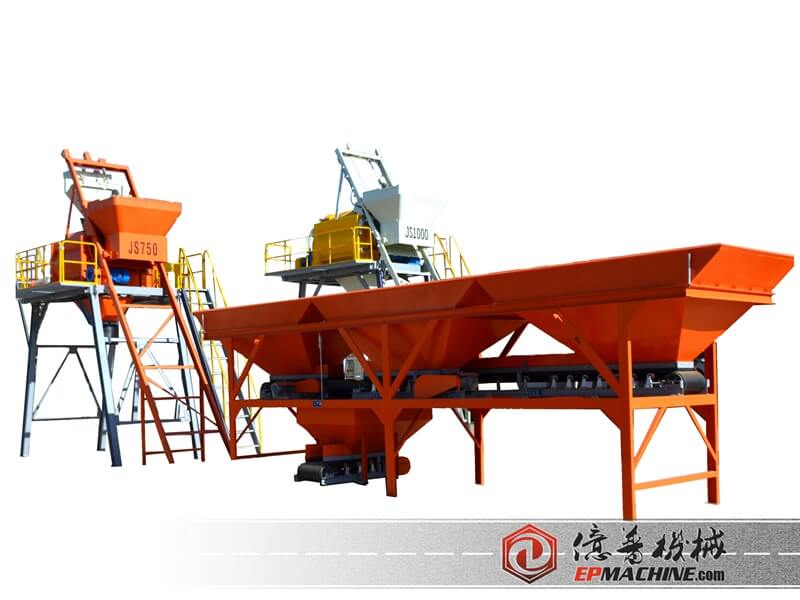

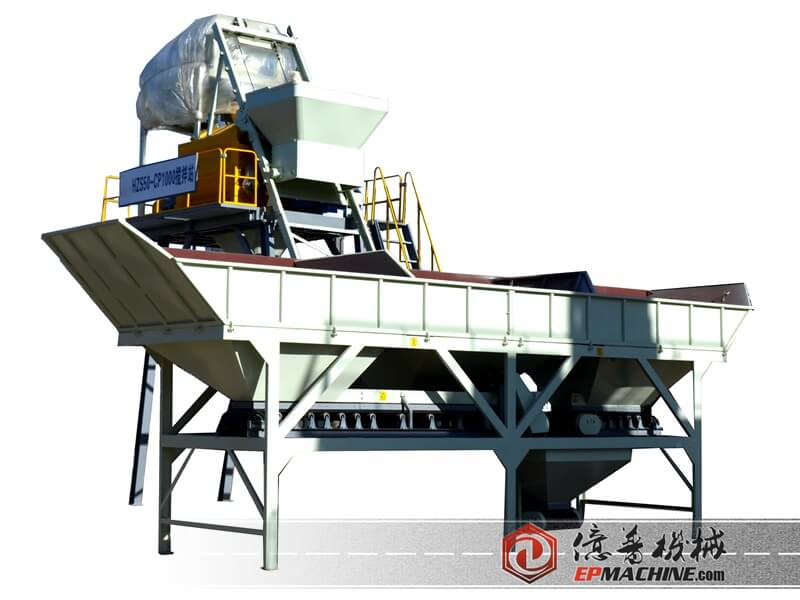

1. Brief Introduction of Bucket Concrete Batching Plant

HZS series concrete batching plant (bucket type) is the developed product, which is integrated the advantages of a variety of models and advanced technology home and abroad, combined with our years’ experience in the production of concrete mixing equipment. It enjoys the benefits of small footprint and simple structure. Being the ideal equipment for ready-mixed concrete, such as dry, rigid, plastic and all kinds of concrete proportion, it is widely used in the hydropower project, airports, roads, bridges and other small and medium scale construction projects and commodities concrete production etc.

2. Feature of Bucket Concrete Batching Plant

1. Module structure.
Module structure is with compact design. The batcher, mixing section, screw conveyor and cement silos are independent sections. The disassembly and installation is fast and the transport is convenient. Different arrangement is available for different requirements.
2. Compact structure with bucket lift system, maximum reduces the input cost and maintenance cost.
3. Excellent mixing performance.
The batching plant equipped with JS twin-shaft mixer, which has excellent performance, short mixing time, good quality mixing result and high production efficiency.
4. Accurate weighing.
The weighing unit and control unit of aggregate, power material and liquid material adopt the famous brand, with computer control which can ensure the accurate weighing and stable working performance.
5. Simple operation.
The batching plant adopts industrial computer of PLC automatic control, also with manual operation for option. Dynamic panel display can easy monitor the running situation of each part. The system can save the production data and print the reports.
6. Good maintenance.
Humanized large maintenance platform and stairs is for easy repair and maintenance. Reserved water outlet on the mixer is convenient for mixer washing. The entire packing (option) ensures the normal daily production and maintenance without weather influence.

3. Parameter of Bucket Concrete Batching Plant

Model	Unit	HZS30	HZS40	HZS50	HZS75	HZS120B
Theoretical productivity	m3/hr	30	40	50	75	120
Mixer model	-	JS500B	JS750B	JS1000B	JS1500B	JS2000B
Mixing motor power	kw	18.5	30	37	55	2*37
Feeding mode	-	Hoist bucket
Cycling period	s	72	72	72	72	72
Max. aggregate size	mm	80	80	80	80	80
Aggregate bins capacity	m3	2*6	3*6	3*12	3*12	4*20
Discharging height	m	4.0	4.0	4.0	4.0	4.0
Aggregate weighing precision	-	±2%	±2%	±2%	±2%	±2%
Power weighing precision	-	±1%	±1%	±1%	±1%	±1%
Water weighing precision	-	±1%	±1%	±1%	±1%	±1%
Additive weighing precision	-	±1%	±1%	±1%	±1%	±1%
