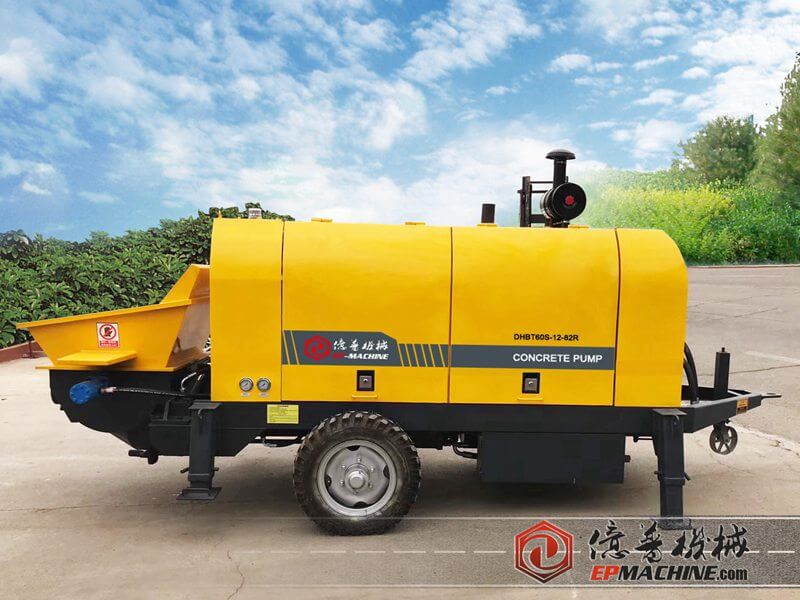

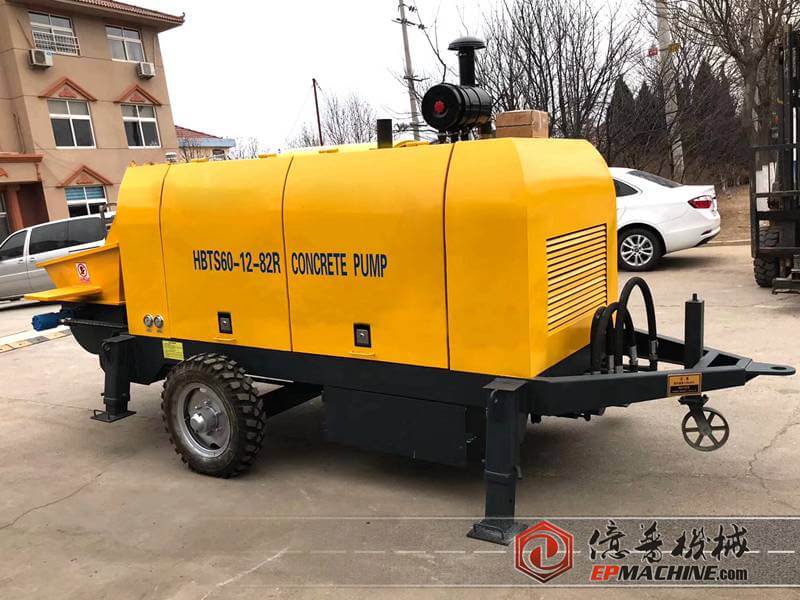

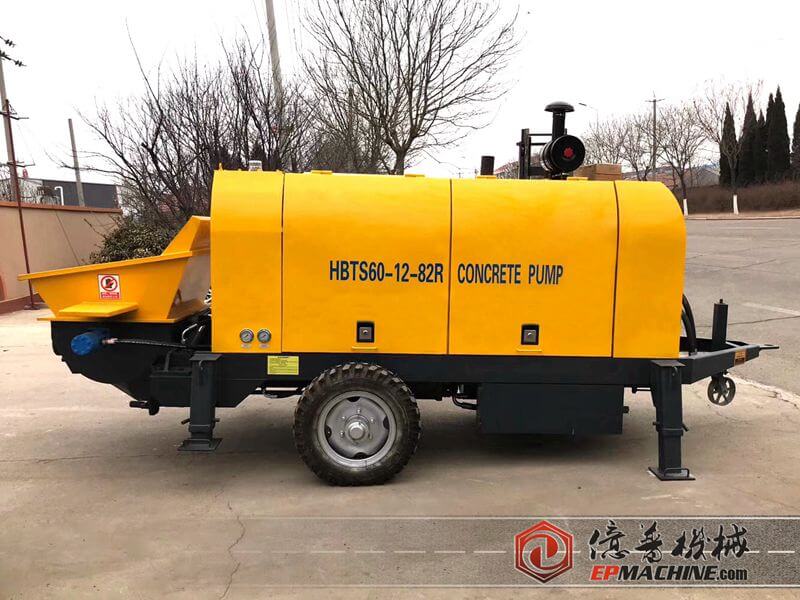

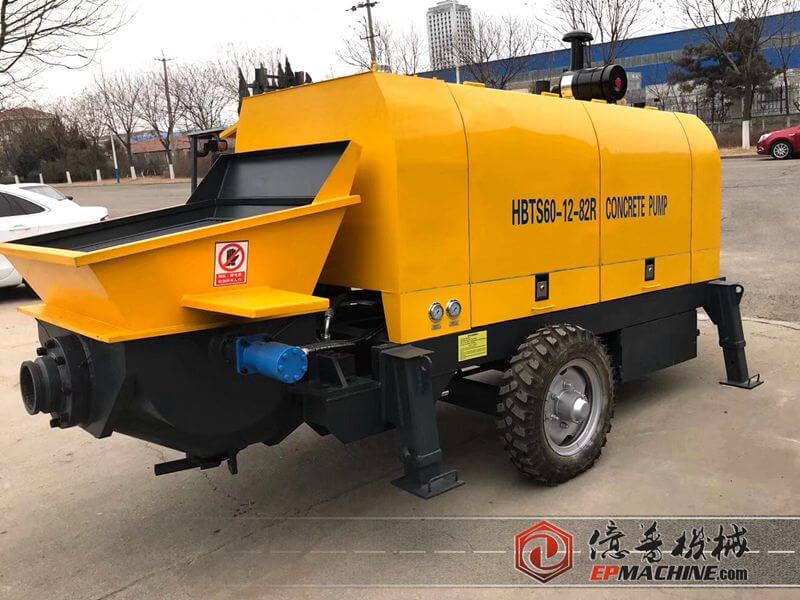

DHBT Diesel Concrete Trailer Pump

Application range:
On the basis of electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. Our various motor and diesel engine concrete pumps mainly cover capacity from 30 to 120m³/h and pressure from 5 to 20Mpa.

We're here to help:
Easy ways to get the answers you need.

PDF Download

description

1. Brief Introduction of Diesel Concrete Pump

On the basis of electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. The hydraulic system greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor and diesel engine concrete pumps mainly cover capacity from 30 to 120m³/h and pressure from 5 to 20Mpa.

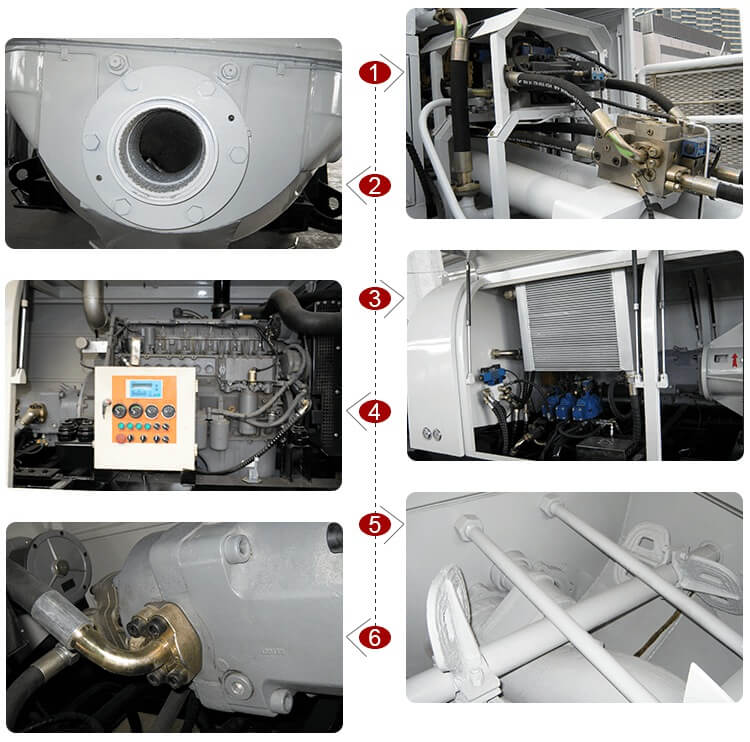

2. Feature of Diesel Concrete Pump

1. Power system: For motors, adopt the domestic and world-famous brands Yantai motors or Beide motors of Siemens. For diesel engine, adopt original VOLVO or Weichai DEUTZ as the power of the pumps.

2. Hydraulic system: The main oil pumps, valves, rubber hose joints and seal components in big oil cylinder adopt the domestic and world-famous brands, insuring the safety and no leakage of hydraulic system.

3. The radiator is air-cooled type, enabling the machine to work under the allowable highest temperature.

4. Electric parts: Main electric elements are from Schneider and LG, the reliability of which is highly improved.

5. Mechanical parts: The hopper is newly designed and welded with wear-resistant 16Mn steel; the concrete in the hopper has a good flowing and absorbency performance.

6. Glasses plates and cut loops are made of anti-wearing horniness alloy, they have long service lives.

7. Lubrication system: Centralized lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn, and the oiling time can be set. So the oiling is accurate and the oil consumption can be saved.



3. Parameter of Diesel Concrete Pump

Item

Unit

S tube concrete pump

DHBT50S-13-56

DHBT60S-13-118

DHBT60S-16-145

DHBT80S-13-145

DHBT80S-16-175

Theoretic concrete delivery volume

m3/h

50

36/60

35/60

47/80

46/80

Theoretic concrete delivery pressure

Mpa

13

7.6/12.5

9.6/15.7

7.6/12.5

9.6/15.7

Hydraulic pressure

Mpa

31.5

32

32

32

32

Diesel engine(can be selected)



Original VOLVO/DEUTZ imported from Germany or domestic brands

Main oil pump



Original German Hawe, Rexruth and Japanese Kawasaki or domestic brands

Diesel engine power

kw

56

118

145

145

175

Fuel consumption

G/kwh

/

218

223

223

228

Capacity of hydraulic oil hydraulic oil tank

L

300

500

500

500

500

Hopper capacity

m3

0.6

0.6

0.6

0.6

0.6

Maximum theoretic delivery distance

 Vertical

m

180

180

250

180

250

Horizontal

m

700

700

1000

700

1000

Overall weight

kg

4000

5300

5500

5800

6000
