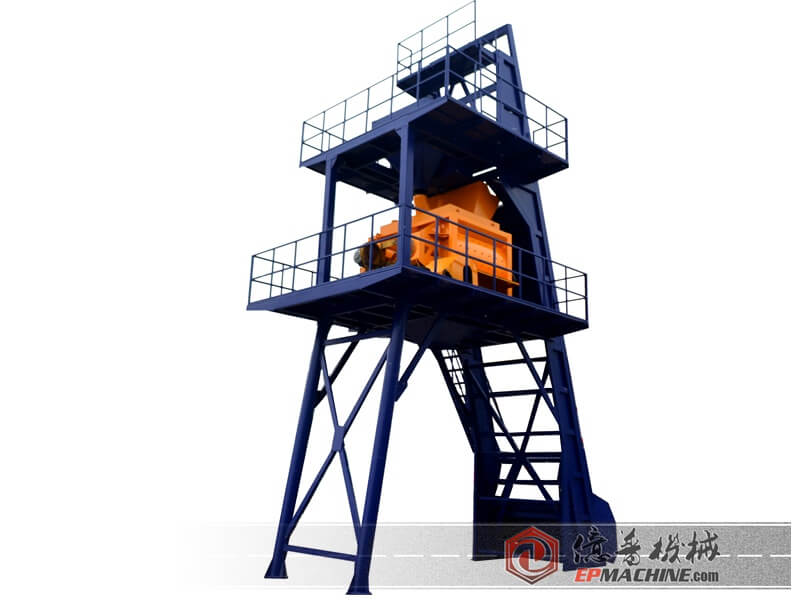

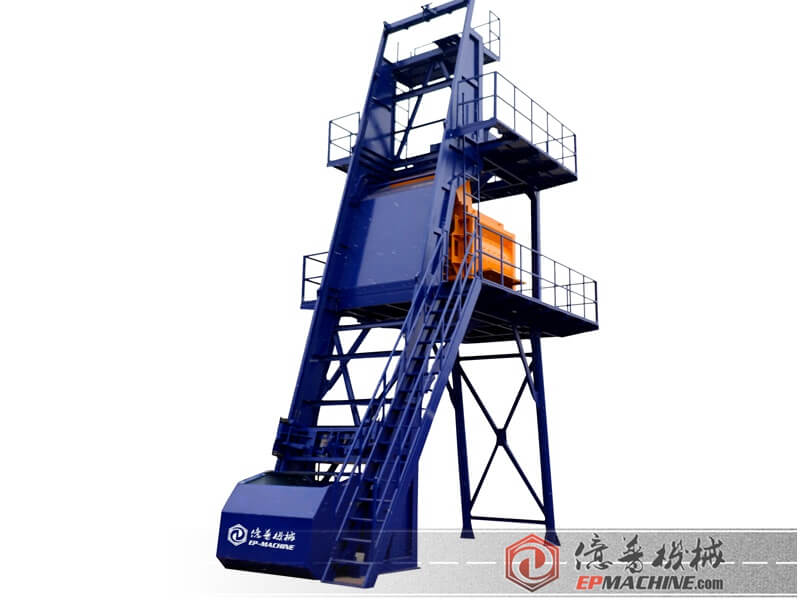

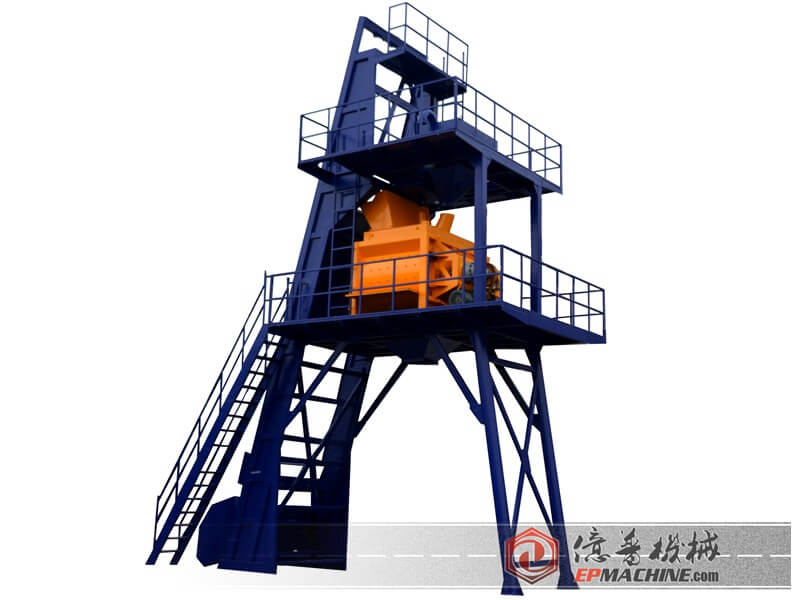

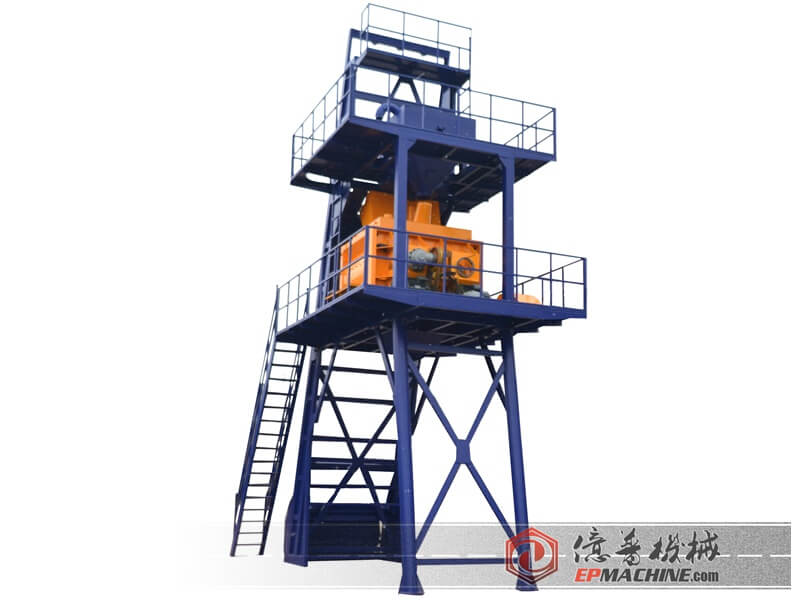

1. Brief Introduction of bucket type concrete batching plant

HZS120B concrete batching plant is the tipping bucket feeding type, which is composed of concrete mixer, tipping bucket feeding system, scale assembly of cement, fly ash and water, assembly of water supply and liquid additive scale, pneumatic system and control room, etc. It is applicable to all types of precast plant and water conservancy, roads, bridges and other industrial and civil engineering constructions for dry concrete, fluidity concrete, lightweight aggregate concrete and all kinds of mortar.

2. Features of concrete batching plant

1. Tipping bucket feeding system, equipped with fall protection, enjoys the advantages of simple and reliable performance, less wear parts, low maintenance cost and small footprint.
2. Adopt quick plugs connector for pneumatic, electric and water supply systems, ensures the quick installation, great labor and time saving and convenient relocation.
3. Mixing system: reliable shaft-end sealing technology, high wear-resistant plates and blades, unique no-sticky shaft technology, and the mixing tube cleaning technology to reduce the workload of cleaning.
4. Discharge system: hydraulic discharge, use a pump and a tank, to achieve the discharge door is opened or closed by a lever mechanism and proximity switches.
5. Transmission: reducer with smooth transmission and low noise, famous brand high-quality mixing motor with reliable performance.
6. Feeding system: unique lifting mechanism, start and stop gently, long wire rope life, limit switches to limit and protect the hopper.
7. Electrical system: control circuit equipped with air switch, fuse and thermal relay, which has the functions of short circuit protection, overload protection and phase failure protection. Imported main component parts are with excellent performance and high reliability.
8. Humanized design of non-slip ladder, walkway and large access facility provide convenience to the maintenance.

3. Parameter of tipping bucket type ready mix concrete plant

Model	Unit	HZS120B
Theoretical productivity	m3/hr	120
Mixer model	-	JS2000B
Mixing motor power	kw	2*37
Feeding mode	-	Hoist conveyor
Cycling period	s	72
Max. aggregate size	mm	80
Aggregate bins capacity	m3	4*20
Discharging height	m	4.0
Aggregate weighing precision	-	±2%
Power weighing precision	-	±1%
Water weighing precision	-	±1%
Additive weighing precision	-	±1%
