Concrete Mixer With Pump, concrete mixer pump, concrete pump mixer

1. Introduction Of JBT Series Concrete Mixer Pump

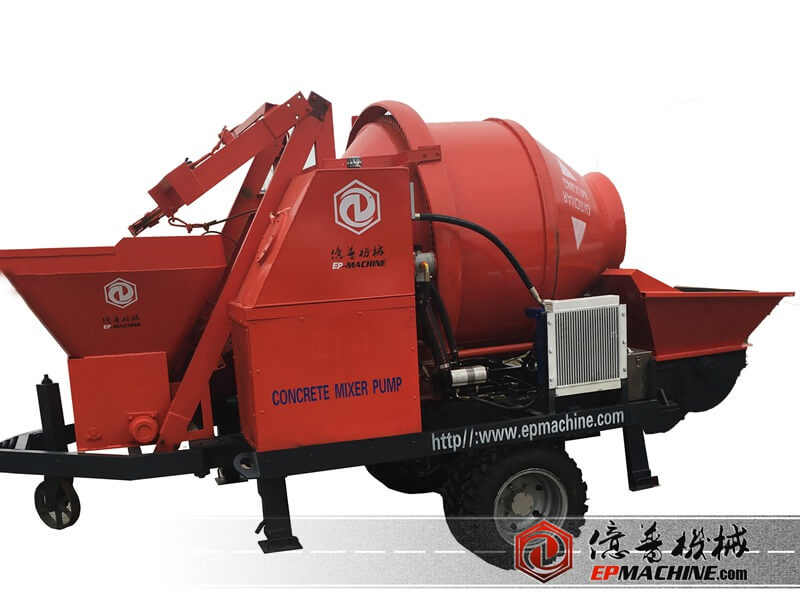

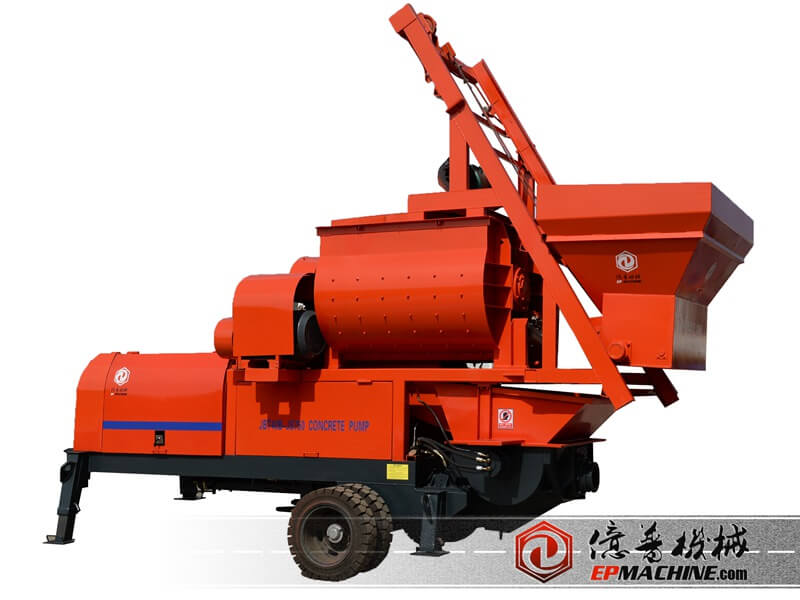

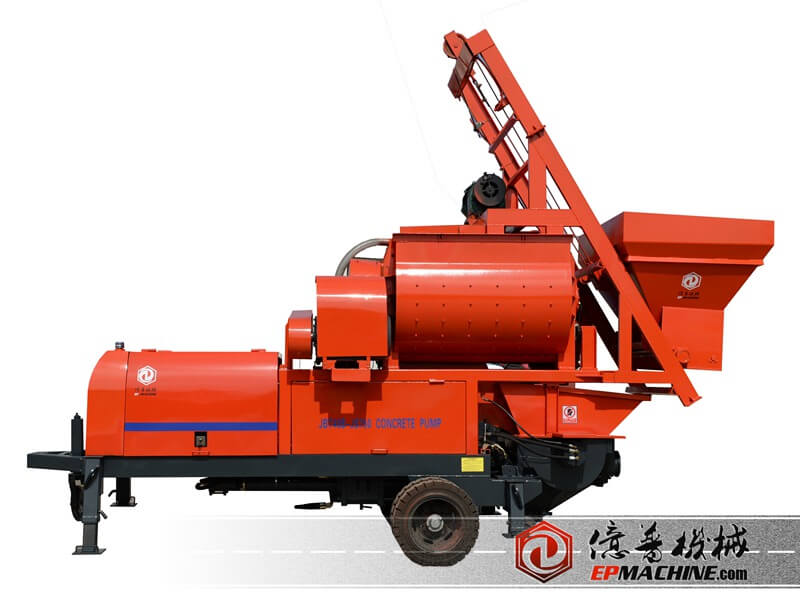

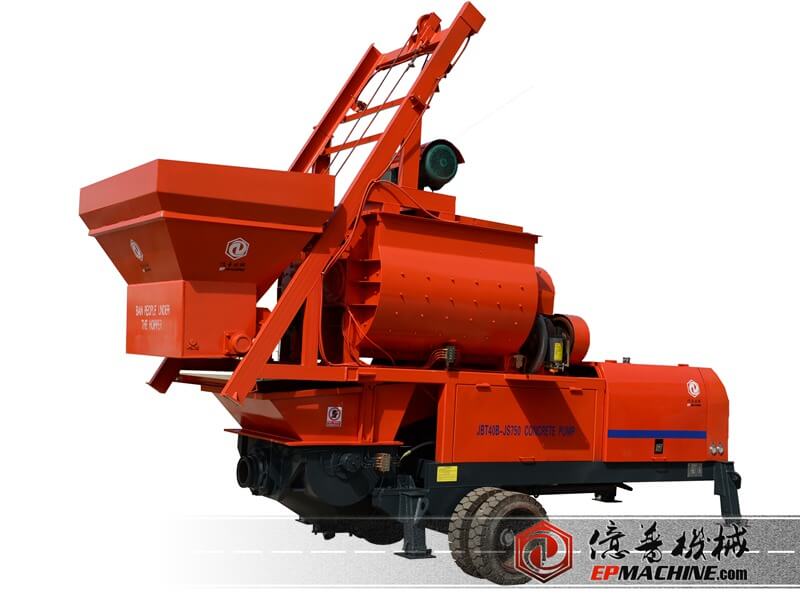

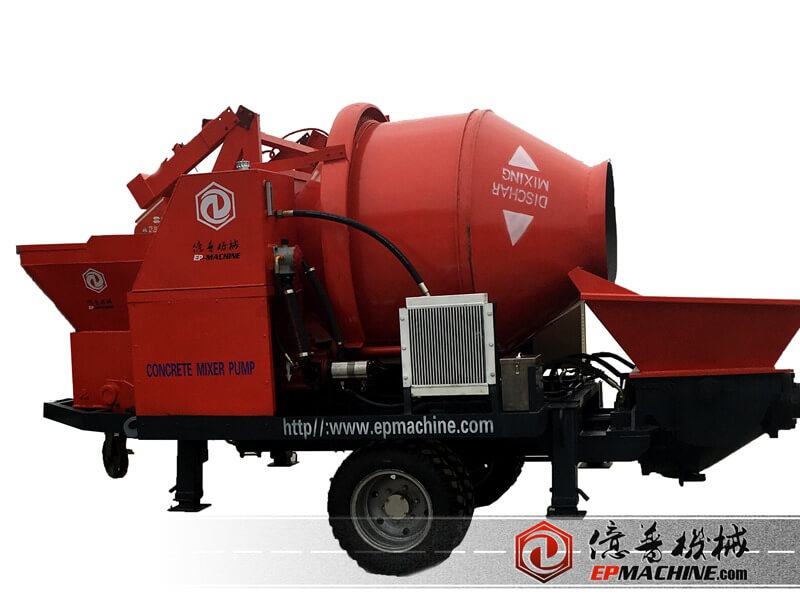

JBT concrete mixer with pump combines the functions of concrete mixing and conveying. Be moveable with types from one construction site to another. Pump not only large size aggregate concrete, but also fine stone concrete or mortar. Be suitable for the small and middle-scale road and house projects. It can also work in the power shortage areas by equipped with generator set.

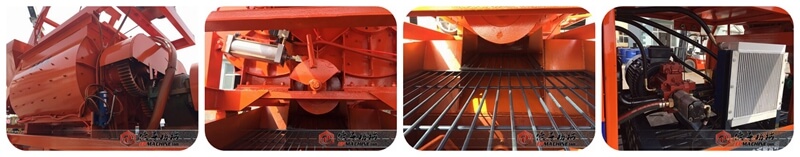

2. Features Of JBT Series Concrete Mixer With Pump
1. Adopt Open hydraulic system, which is with stable and reliable performance, low failure rate.
2. Integration control for mixing and pumping, wireless remote control, which makes operation convenient.
3. Specialized double doors for the electrical box, which is with dust proof, water proof and good sealed performance.
4. Adopt wear-resistant alloy materials for the concrete mixer, prolong the service life.

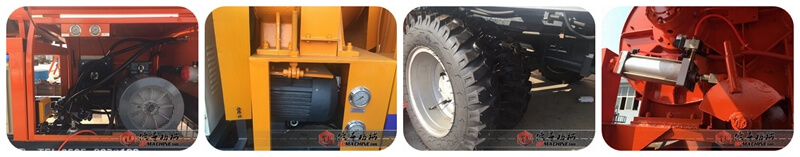

5. Equipped with double row tires, which can bear heavy weight, stand steady, and be towed on the rough road.

3. Advantages Of JBT Series Concrete Mixer With Pump
1. Main oil pump. Adopt domestic famous brand or Rexroth, Kawasaki series.
2. Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication effect.
3. Power system. Adopt domestic and world famous motor and diesel engine.
4. Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.
5. Electric parts. Main electric elements are from Schneider or ABB, highly improved the reliability.
6. Seal parts. Big oil cylinder’s seal components adopt American Parker.
7. Hydraulic rubber hose joints. Adopt American Eaton, insures safety and no leakage of hydraulic system.
8. S valve. Wear-resistant cast iron materials, enjoys the advantages of anti-high pressure and anti-wearing.
9. Glass plates and cut loops. Made of anti-wearing horniness alloy, has long service life.
10. Concrete piston. Precisely processed by imported material, enjoys the features of hydrolytic resistant, wear resistant and high temperature resistant.

4. Parameters Of JBT Series Concrete Mixer With Pump

Item	JBT30	JBT40	JBT40B-JS500	JBT40B-JS750
Theoretical output (m3/h)	30	40	40	40
Max. concrete pumping pressure (MPa)	10	10	8	8
Power type	Motor	Motor	Motor	Motor
Electric motor (kw)	37	45	45	45
Main oil pump	Jinda	Kawasaki	Kawasaki	Kawasaki
Concrete cylinder diameter x stroke (mm)	Φ140x845	Φ180x1000	Φ200x1000	Φ180x1000
Main oil cylinder diameter x stroke (mm)	Φ80x845	Φ100x1000	Φ100x1000	Φ100x1000
Theoretical delivery distance (m)	120/350	160/500	120/400	120/400
Max. aggregate diameter (mm)	20/30	30/40	40/50	40/50
Inside diameter of delivery pipe (mm)	Φ100	Φ150	Φ180	Φ180
Dimension: length x width x height	4500x2200x2800	4800x2200x2800	4800x2200x3100	4800x2200x3300
Total weight	5000	5500	7500	9000
