Cement Silo

Application range:
Cement silo is closed warehouse for store up powder material such as cement, fly-ash, foodstuff, etc.

We're here to help:
Easy ways to get the answers you need.

PDF Download

description

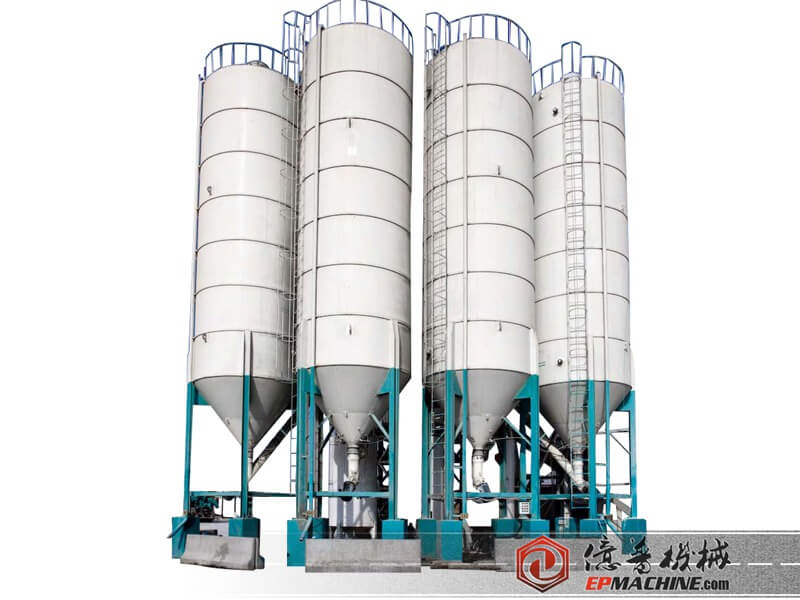

1. Brief  Introduction of cement silo

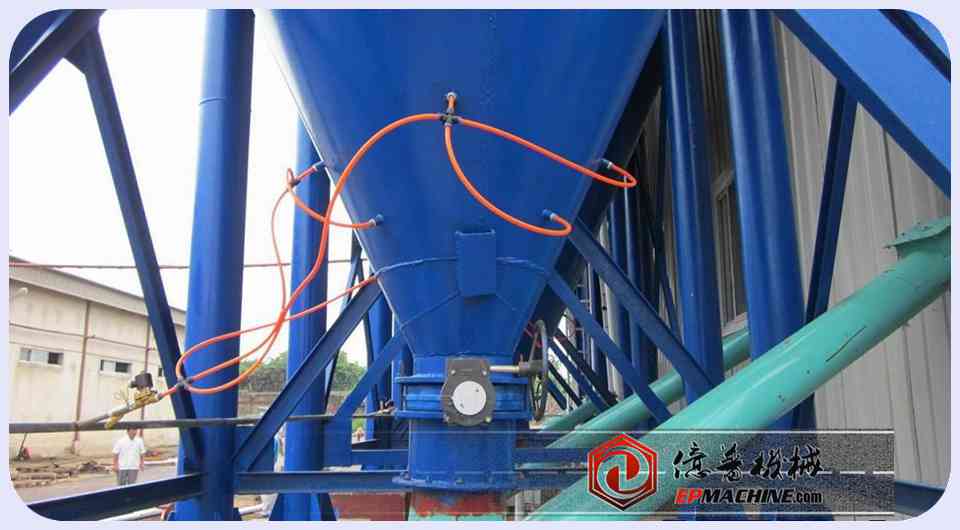

Cement silo is closed warehouse for store up powder material such as cement, fly-ash, foodstuff, etc. The silo is assembled with material level indicator to know how much inner material left, also assembled with pneumatic air brake system at the silo bottom, to avoid material blocking and discharging non-smoothly because of the gravity.

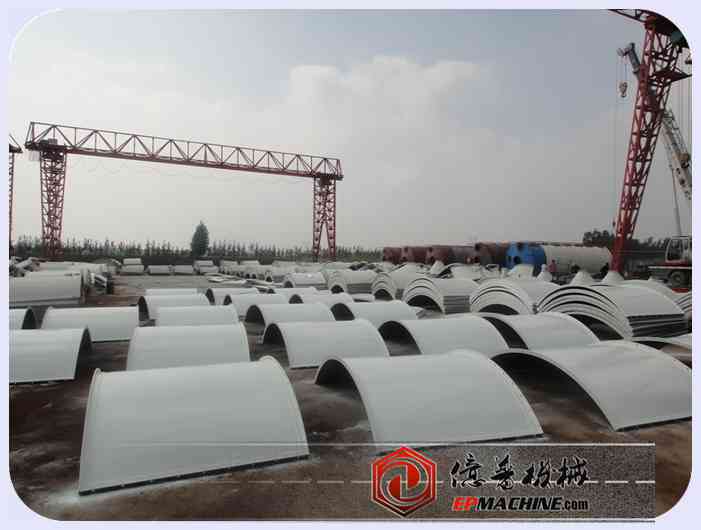

EP plated cement silo, which is also called Separated cement silo or Sectional silo, is specially designed for long-term transportation, such as ocean shipping, railway transportation, etc. The series of silo can be easily loaded into containers, which can save much space and freight charge.

2. Main parameters of cement silo

Capacity

Diameter of silo

Height of silo

Total Height

Assort with mixer

Assort with screw conveyor

30T

Φ3m

4.8m

11.4m

JD350

Φ140/Φ168

50T

Φ3m

5.4m

12m

JS500/JS750

Φ168/Φ219

80T

Φ3m

9m

15.6m

JS750/JS1000

Φ219

100T

Φ3m

11.4m

18m

JS1000-JS2000

Φ219/Φ273

150T

Φ3.3m

23.5m

29m

JS1000-JS3000

Φ273

200T

Φ4.5m

18.6m

25.2m

JS1500-JS3500

Φ273/Φ323

300T

Φ4.5m

24.6m

29.5m

JS2000-JS4000

Φ323/Φ407

500T

Φ6M

22.2m

28.8m

JS3000-JS6000

Φ407
