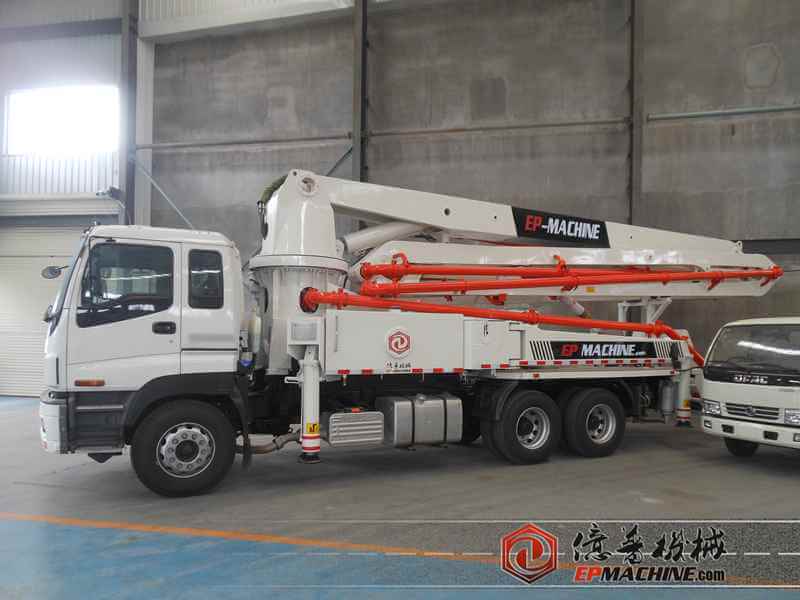

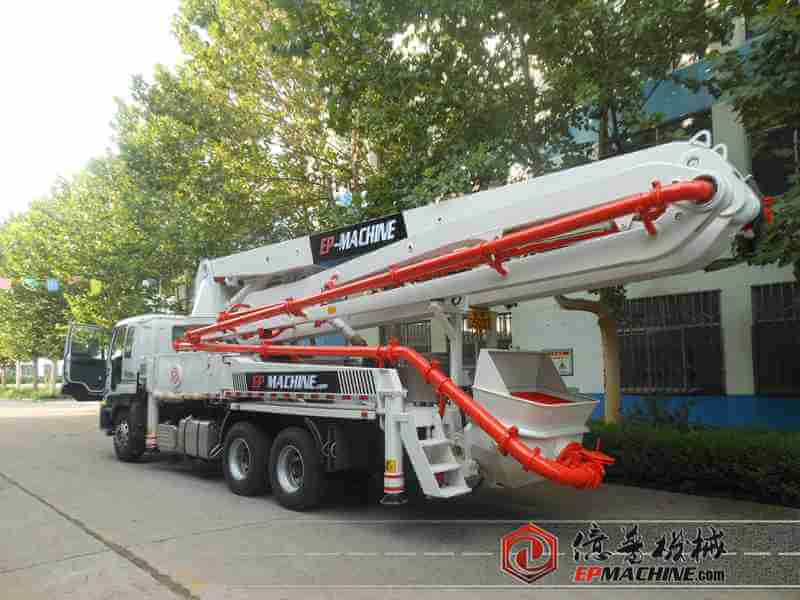

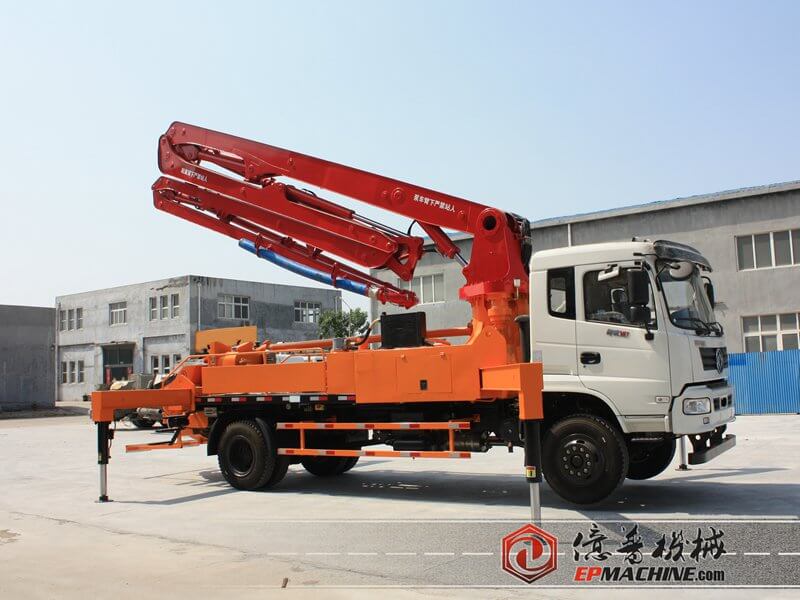

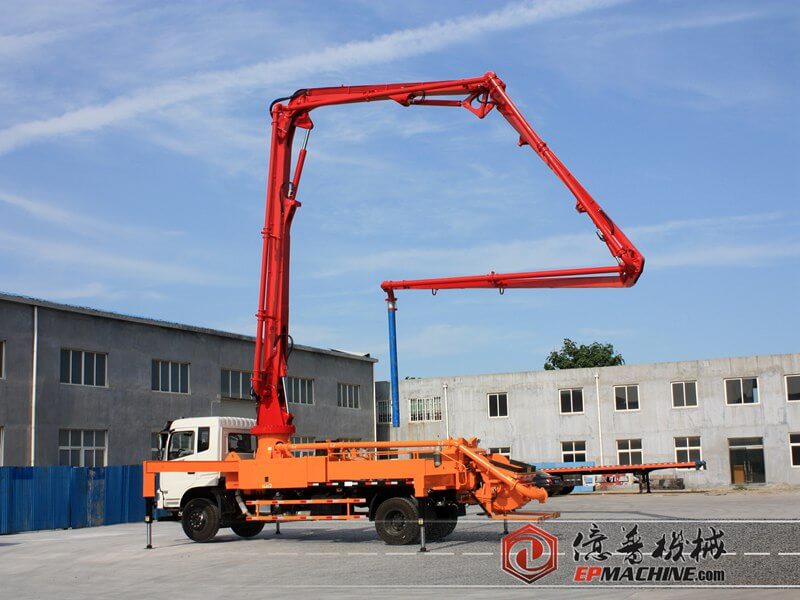

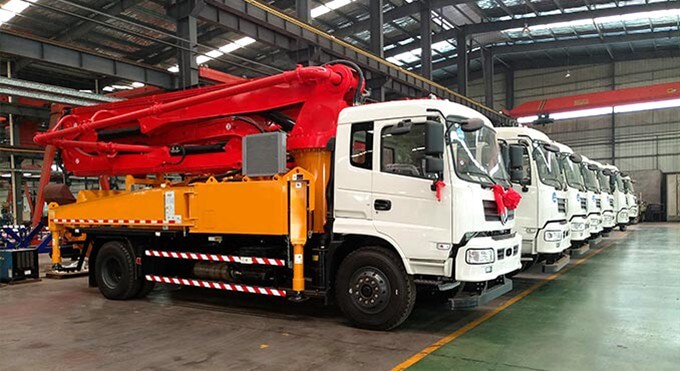

Concrete Boom Pump Truck

Application range:
Concrete boom pump truck is a kind of machinery, which is transformed on the basis of truck chassis, uses continuous pressure to pump concrete along the pipeline. It is composed of the pump and delivery tube.

We're here to help:
Easy ways to get the answers you need.

PDF Download

description




Concrete boom pump truck is a kind of machinery, which is transformed on the basis of truck chassis, uses continuous pressure to pump concrete along the pipeline. It is composed of the pump and delivery tube.




 Features of Concrete Boom Pump Truck

1. High safety coefficient. Stepper motor imported from America and driver to control the engine speed.
2. Choose the best quality materials. Import the 900# steel plate from Austria, Strength is three times than the 16Mn.
3. More intelligent operation. The control system has the function of engine remote flame-out. You can start or stop the engine work according the working condition.
4. High design standard. X leg, the car body is shot and the stability is good, the supporting leg can be unfolded out in a narrow space.
5. International purchased component, which is with more high stability performance and high cost-efficiency.
6. Pumping hydraulic system. Overall hydraulic commutation system; the alternative commutation actions between pumping and S tube distribution doesn’t involve electric signals, little impact and noise occurs during the commutation, so the service lives of hydraulic pump and valves are evidently lengthened.
7. Intelligent control system. Adopt concentration plate to make the mail hydraulic system valve more concentration, reduce the pipeline road cross, save every drop of oil pump.
8. Automatic control. Unique arm frame buffer technology can reduce the high pressure value system, even in the case of high output to make the boom steady;
9. Efficient pumping. Large diameter cylinder, big pump flow;


 Parameters of Concrete Boom Pump Truck

Model EP5196THB28/4 EP5196THB33/5 EP5280THB-38/5 EP5401THB-48/5
Item Unit Parameters Parameters Parameters Parameters
Pumping system Max.theoryoutput m3/h 60 80 150 150
Theoretic pumping pressure Mpa 13 12 10.5 8.5
Hopper capacity L 650 650 650 700
Filling height mm 1450 1450 1450 1400
Distribution valve   S valve S valve S valve S valve
Placing boom Placing depth m 27.3 32.8 37.8 47.4
Horizontal distance m 23.8 29.3 33.7 43.7
Placing depth m 16.8 18.5 24.6 34.3
Pipe diameter mm 125 125 125 125
End hose length mm 3000 3000 3000 3000
Chassis andthe whole machine Chassis model   EQ5200GSZ5DJ EQ5200GSZ5DJ WP10.350E53 ZZ5437S4667C
Wheelbase mm 5200 5200 4600+1350 4600+1350
Engine power HP/(r/min) 220/2000 220/2000 350/2200 350/2200
Total weight kg 20000 21000 32000 40000
Overall dimension mm 10000×2350×3650 10500×2350×3650 11200×2500×3900 13300x2500x4000

 Customer Visit Concrete Boom Pump

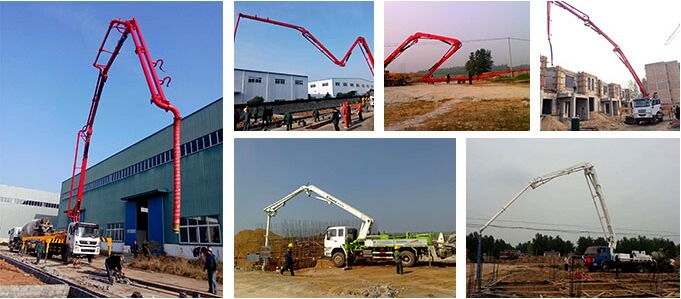

 Project Case Of Using Concrete Boom Pump

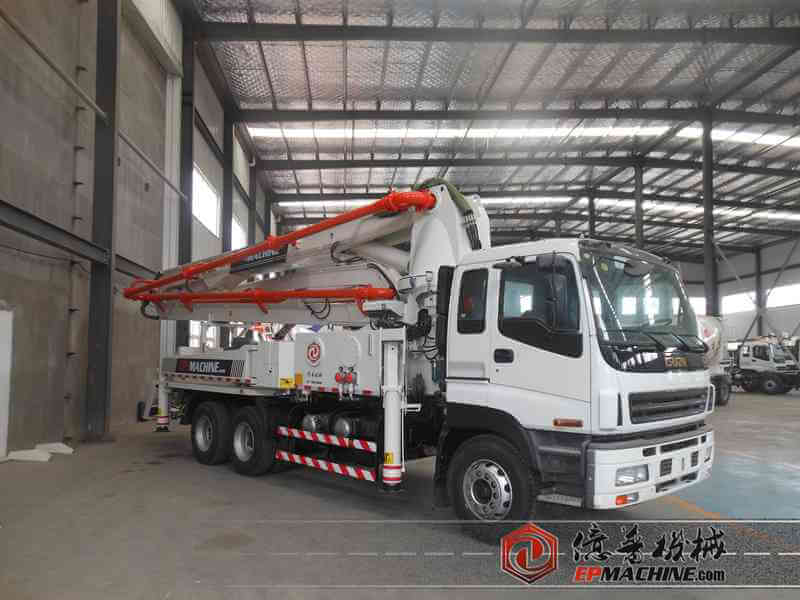

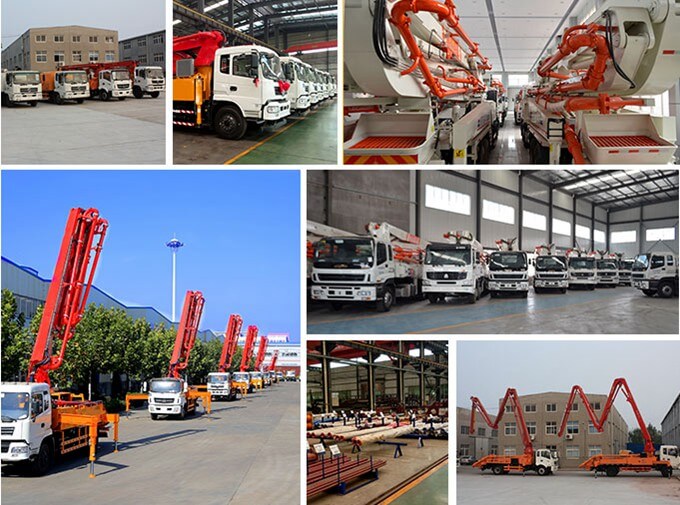

 Factory & Workshop of Concrete Boom Pump Truck
